Creating new or modifying existing toolbox parts is a very common activity in SOLIDWORKS, however until recently I have never used the toolbox application to do this. Previously I have created my new custom toolbox parts from within SOLIDWORKS by simply adding a configuration. The toolbox application makes this process much quicker and is more conveniently organised so you can stay on top of your components.
Creating
new or modifying existing toolbox parts is a very common activity in
SolidWorks, however until recently I have never used the toolbox application to
do this. Previously I have created my new custom toolbox parts from within
SolidWorks by simply adding a configuration. The toolbox application makes this
process much quicker and is more conveniently organised so you can stay on top
of your components.

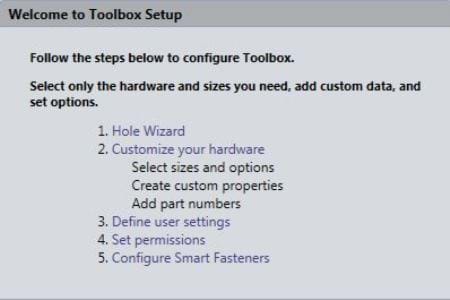

To access the Customize
Hardware page:
-
From Windows, click Start > All Programs > SolidWorks
version > SolidWorks Tools > Toolbox Settings. Or alternatively search “toolbox
settings <SolidWorks version>”.
- Click 2 - Customize Your Hardware.

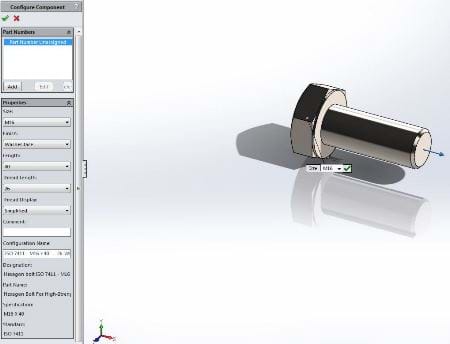

To configure a particular type
or component:
-
Right-click the folder or component in the SolidWorks Design
Library task pane and select Configure.

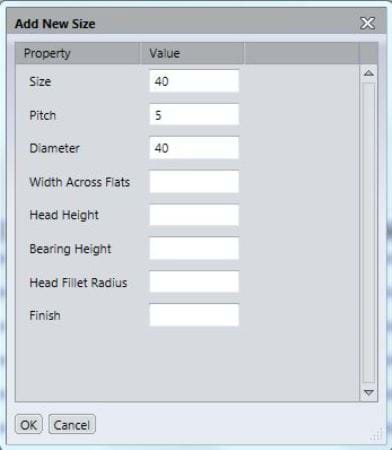

- You customize hardware by selecting individual components and
setting their property values.

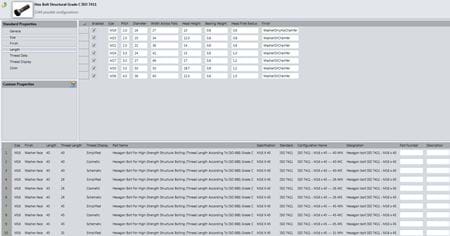

To display a component:
- Click a standard in the left pane and expand its categories and
types, or click the folder icons in the right pane. Under a type, select a component.
The page shows the component icon, name, and the number of possible
configurations.
By
Jon Weston-Stanley
View the Video here
