Design study of a quadcopter frame using SOLIDWORKS Simulation

Thursday November 26, 2015 at 4:09pm
In this Blog post SOLIDWORKS Simulation has been coupled with the ‘Design Study’ tool to run a batch of static studies and optimise a quadcopter frame.

Quadcopters are small unmanned aerial vehicles that use four vertical rotors for both lifting and manoeuvring. Their simple design (no rotor articulation) made them very attractive for model-making enthusiasts. However, they can carry only a small electrical battery, which makes their flight time highly limited (typically 10-20 minutes). Therefore, to increase endurance it is preferable to have the frame structure as light as possible.

In this case study SOLIDWORKS Simulation was coupled with ‘Design Study’ tool to run a batch of static studies and optimise a quadcopter frame.

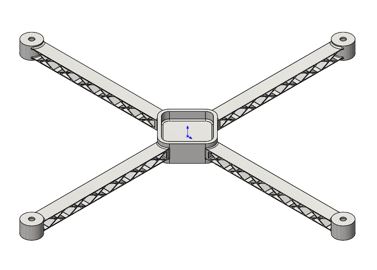

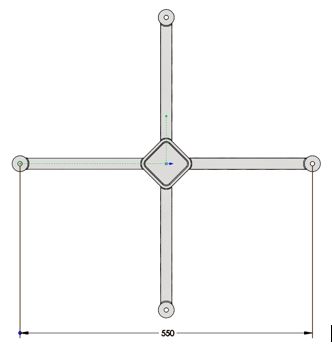

The frame created for this study included all of the essential features: four rotor mounts and beams, and a payload bay in the centre.

SOLIDWORKS Simulation Design Study

SOLIDWORKS Simulation Design Study

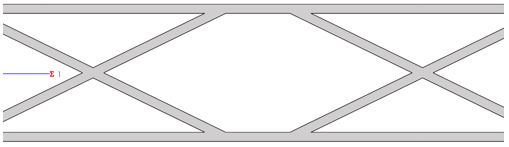

The structure was modelled in a way that would allow to quickly alter the beam thickness using a global variable.

SOLIDWORKS Simulation Design Study

SOLIDWORKS Simulation Design Study

A static study was set up to simulate the worst case scenario of quadcopter climbing vertically up with its highest achievable vertical acceleration. Assuming the craft would be able to achieve its maximum rate of climb of 8m/s in 1 second – this was evaluated to be 8m/s2.

The quad copter mass was assumed to be 1.75 kg. ABS PC material was applied to the model using SOLIDWORKS material database.

An FEA configuration was made to use only a quarter of the model to speed up time to solve. This was done using ‘Cut with Surface’ feature.

SOLIDWORKS Simulation Design Study

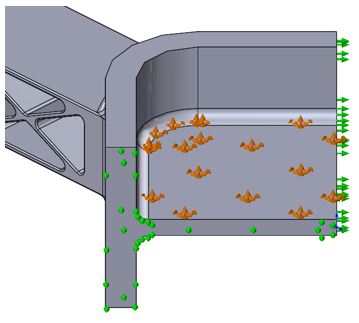

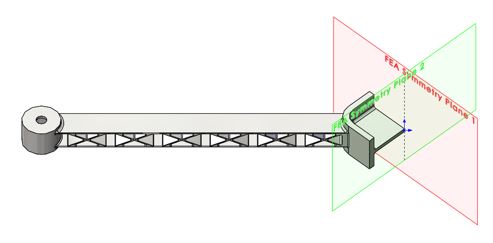

Symmetry fixture was applied to sectioned faces and top face of payload bay was set to fixed geometry.

SOLIDWORKS Simulation Design Study

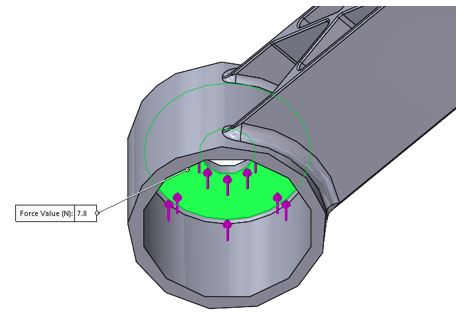

The rotor mount inner face was loaded vertically up as follows:

¼ of quadcopter mass X (Acceleration due to gravity + Aircraft acceleration) = 1.75 x 0.25 x (9.81 + 8) = 7.8 N

SOLIDWORKS Simulation Design Study

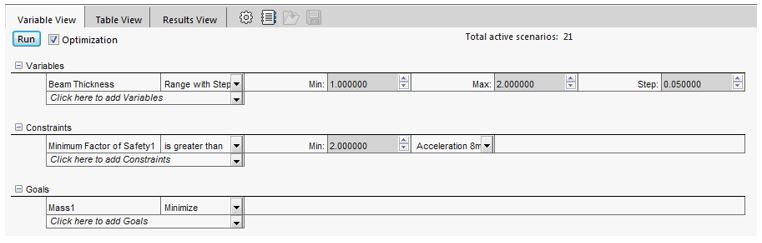

Design Study (Evaluate>Design Study) was set up to simulate beam thicknesses between 1.00 mm and 2.00 mm with 0.05 mm step. The minimum factor of safety was set to 2 and the goal of the study was to minimize mass.

SOLIDWORKS Simulation Design Study

Results:

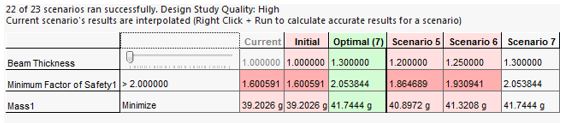

 After going through 21 scenario the optimal rib thickness was found to be 1.8 mm resulting in 41.74 g for the quarter model, or 167 grams for the whole frame.

SOLIDWORKS Simulation Design Study

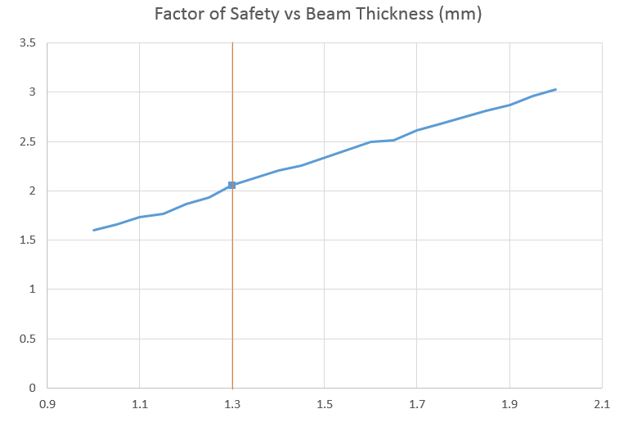

Results were also saved out in a .csv file to create a plot which illustrates how F.O.S rises with increasing the beam thickness.

SOLIDWORKS Simulation Design Study

Conclusion:

With ‘Design Study’ one can setup a batch of simulation jobs to help on choosing the optimal structure that will satisfy the strength requirements

Rodion Radchenko

Applications Engineer

 SOLIDWORKS Application Engineer
