SOLIDWORKS Inspection

Overview

BOOK A FREE DEMO
What can SOLIDWORKS Inspection do?
First Article Inspection (FAI) Software
Available as both a standalone application and a SolidWorks add-in, SolidWorks Inspection is able to utilise 2D legacy data in a variety of file formats including SolidWorks files, PDFs and TIFFS. SolidWorks Inspection can reduce time spent on technical document inspection by up to 90%, aiding in the elimination of input errors therefore reducing time to market via increased efficiency.

SolidWorks Inspection Professional provides users with multiple methods of inputting measured values such as with digital caliper, manual entry or via importing coordinate measuring machine results.
KEY FEATURES OF SOLIDWORKS INSPECTION

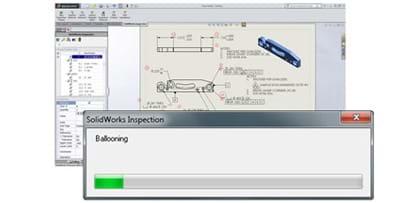

Inspection Documents made easy

With an intuitive, easy-to-use interface SOLIDWORKS Inspection allows you to generate inspection reports and ballooned drawings in a matter of minutes, resulting in time savings of up to 90%

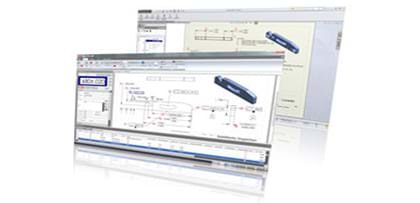

Use across a range of CAD Platforms

SOLIDWORKS Inspection can be used as standalone application to be used with alternative CAD programs as well as being seamlessly integrated into SOLIDWORKS with the Inspection add-in.

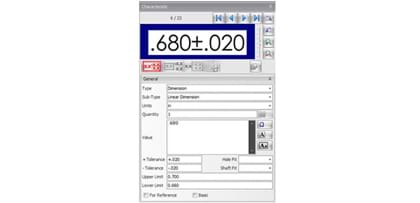

Optical Character Recognition (OCR)

Optical Character Recognition is used to interpret nominal dimension, plus and minus tolerances and dimension type (such as diametric and linear) to remove the need for manual input whilst reducing errors.

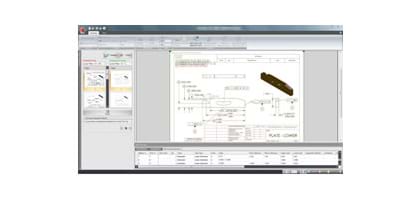

Identify Revision Errors

Identify changes and errors in various design revisions with SOLIDWORKS Inspection advanced drawing comparison capabilities.

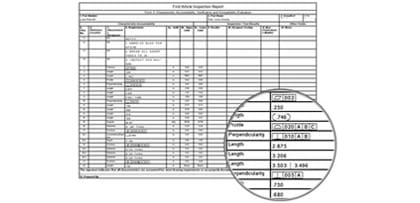

Improve Time to Market

With industry standard reports and ballooned drawings generated in just a few moments in a range of customisable formats, SOLIDWORKS Inspection reduces errors and inconsistencies whilst reducing inspection time by up to 90%.

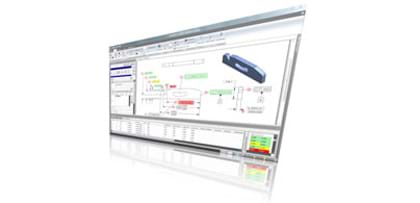

Speed up Inspection

Inspect your parts quickly, simply enter measured values, use a digital caliper or import results directly with a coordinate measuring machine.
